Φ3000mm slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Ask Lasest Price
Brand Name :	tangxing
Model Number :	different models
Certification :	ISO9001
Payment Terms :	T/T
Supply Ability :	300sets per year
Delivery Time :	2 months

Add to Cart

Product Details
Company Profile

Φ3000mm slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

Wechat: 18752825001 or caiqixia88

Features:

●Designed for all kinds of ground conditions, especially silt and sand.
●Stable construction excavation face; low construction disturbance to surrounding soil;low ground settlement.
●Independent water injection,grouting and cutter cleaning apparatus which is suitable for hard soil of high N value.
●Slurry pipeline promises the construction safety of the working shaft.
●Working continuously,high jacking speed.
●Remote control operation on the ground, fully automatic response within the head.

Technical Parameters:

NSPD3000ASlurry Balance Pipe Jacking Machine Technical Parameter:

Technical parameter	Concrete pipe diameter(mm)			￠3000	￠3200	￠3500
	Machine head OD×Length mm			￠3600×5200	￠3820×5200	￠4160×5200

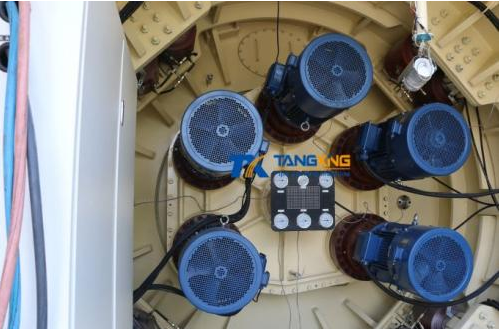

	Cutting head		Motor power Kw	30×6
			Max. torque KN.m	1264
			Rotation rate:rpm	1.36
	Rectifying system	Cylinder no.		8
		Thrust: T		155×8	155×8	155×8
		Deviation angle		2.5
		Motor power:Kw		4
	Slurry intake& discharge system	Diameter(mm)		6′DN150
	Jacking speed: mm/min			0~100
	Machine head weight:(ton)			48	55	65
	Machine head total power Kw			200
	cable			220m
	control			PLC remote control (touch screen)
	Application			Soft soil,hard soil,clay,sandy soil & gravel
