Φ3200mm slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Ask Lasest Price
Brand Name :	tangxing
Model Number :	different models
Certification :	ISO9001
Payment Terms :	T/T
Supply Ability :	300sets per year
Delivery Time :	2 months

Add to Cart

Product Details
Company Profile

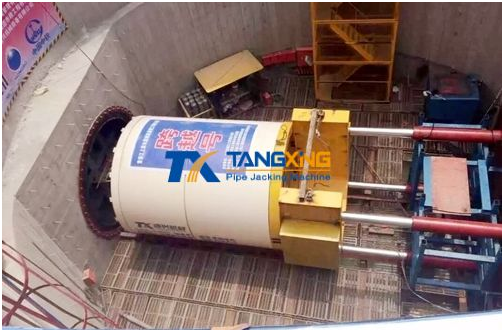

Φ3200mm slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

Features:

●Designed for all kinds of ground conditions, especially silt and sand.
●Stable construction excavation face; low construction disturbance to surrounding soil;low ground settlement.
●Independent water injection,grouting and cutter cleaning apparatus which is suitable for hard soil of high N value.
●Slurry pipeline promises the construction safety of the working shaft.
●Working continuously,high jacking speed.
●Remote control operation on the ground, fully automatic response within the head.

Technical Parameters:

Dimensions	Pipe Jacking Machine OD	￠3820mm
Dimensions	Length	5400mm
Cutter head	Cutter Head Motor Power	6*30KW
	Revolution Speed	1.36 RPM
	Torque	1264 KN.m
Steering System	Cylinder No.	8
	Thrust	155T*8
	Max. Steering Angle	2.5°
	Pump Station Max. Pressure	31.5MPa
	Cylinder Stroke	95 mm
	Pump Station Motor Power	5.5 kw
Machine Total Power		200kw
Total Weight		55T
Control	Remote PLC Control(Touch Screen)
Soil	Soft soil, sand, clay

Dimensions	Pipe Jacking Machine OD	￠3820mm
Dimensions	Length	5400mm
Cutter head	Cutter Head Motor Power	6*30KW
	Revolution Speed	1.36 RPM
	Torque	1264 KN.m
Steering System	Cylinder No.	8
	Thrust	155T*8
	Max. Steering Angle	2.5°
	Pump Station Max. Pressure	31.5MPa
	Cylinder Stroke	95 mm
	Pump Station Motor Power	5.5 kw
Machine Total Power		200kw
Total Weight		55T
Control	Remote PLC Control(Touch Screen)
Soil	Soft soil, sand, clay
